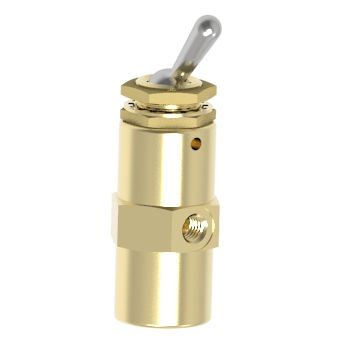

4V TAC Miniature Toggle Valve
Four way miniature toggle valve, detented, with 10-32 UNF ports. TAC toggle valves feature an attractive lever above a 15/32-32 threaded collar. Feature permits easy panel mounting. Toggle design prevents valve overstroke. Compact. Rugged.
Details & Daten
| Artikelnr. |
4V |
| Hersteller |
Humphrey |
| Number of Ports |
5 ports |
| Number of Positions |
2 positions |
| Valve Function |
4-way, Detent |
| Piping Type |
Inline, Direct Piping |
| Options Included |
Panel Mounting Hardware |
| Approx Size (in) HxWxD |
2.12 x 0.69 HEX |
| Media |
Air |
| Type of Operation |
Toggle |
| Flow Capacity (Cv) |
0.18 |
| Port Size |
10-32 UNF |
| Lubrication |
Recommended |
| Media Filtration |
40 micron recommended |
| Pressure Range (psi) |
0-125 |
| Ambient Temperature Range (⁰F) |
-20~180 |
| Wetted Materials |
Brass, SST, Buna N |
| Weight (oz) |
2.5 |
